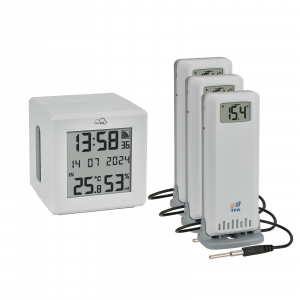

TFA.me Starter Set WIFI Gateway and KLIMA@HOME 2 35.8109

Highlights:

  • Set for climate control at 4 different locations
  • Gateway function to access the TFA.me platform

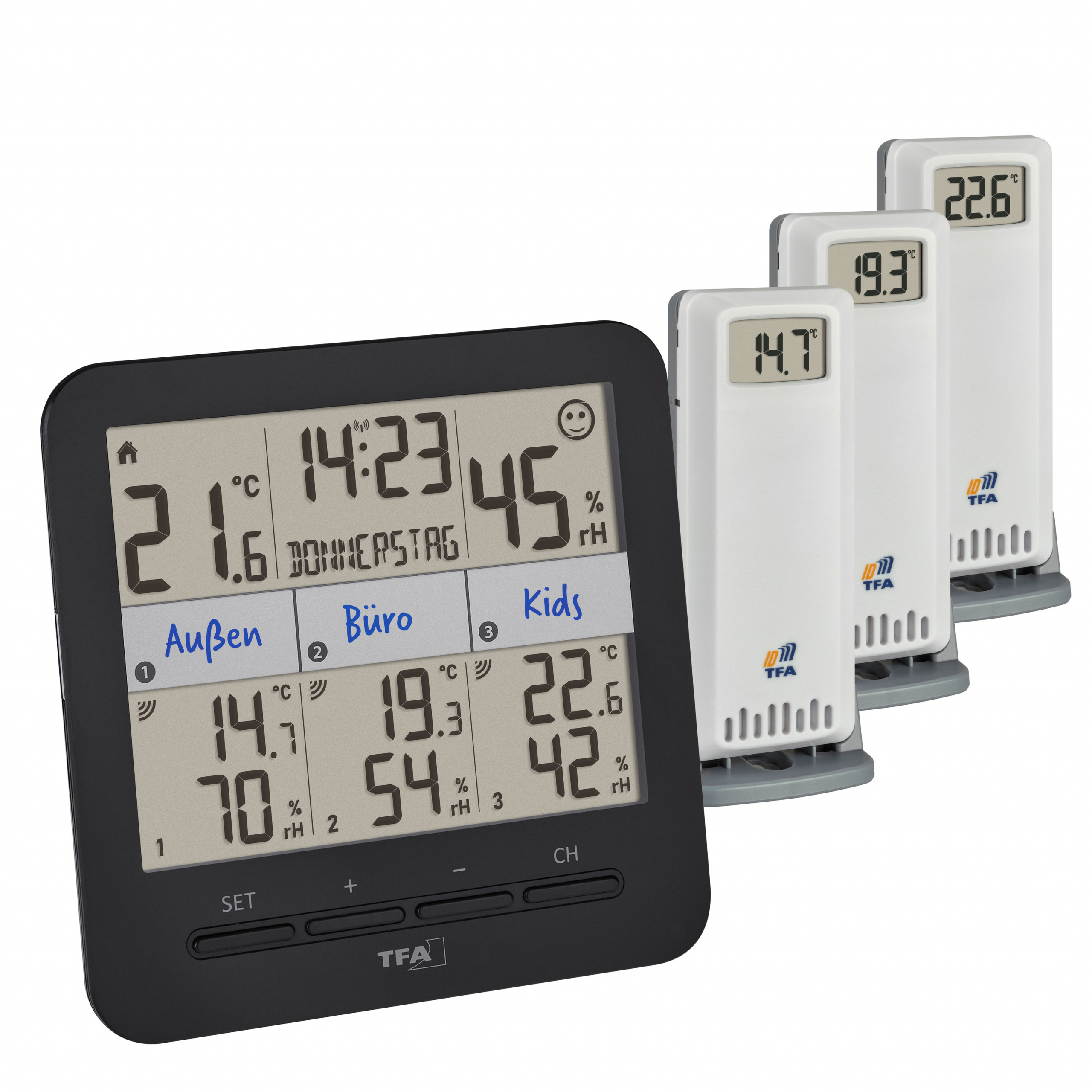

  • KLIMA@HOME 2 station with 3 Thermo-Hygro-Transmitter inclusive
  • Free TFA.me online portal allows worldwide access to measured values
  • Easy to expand with the TFA.me system

Item number:

35.8109.02

Style:

Buy now

Function

  • Gateway for receiving and forwarding up to 50 transmitters
  • Enables online access to measured values on the TFA.me platform

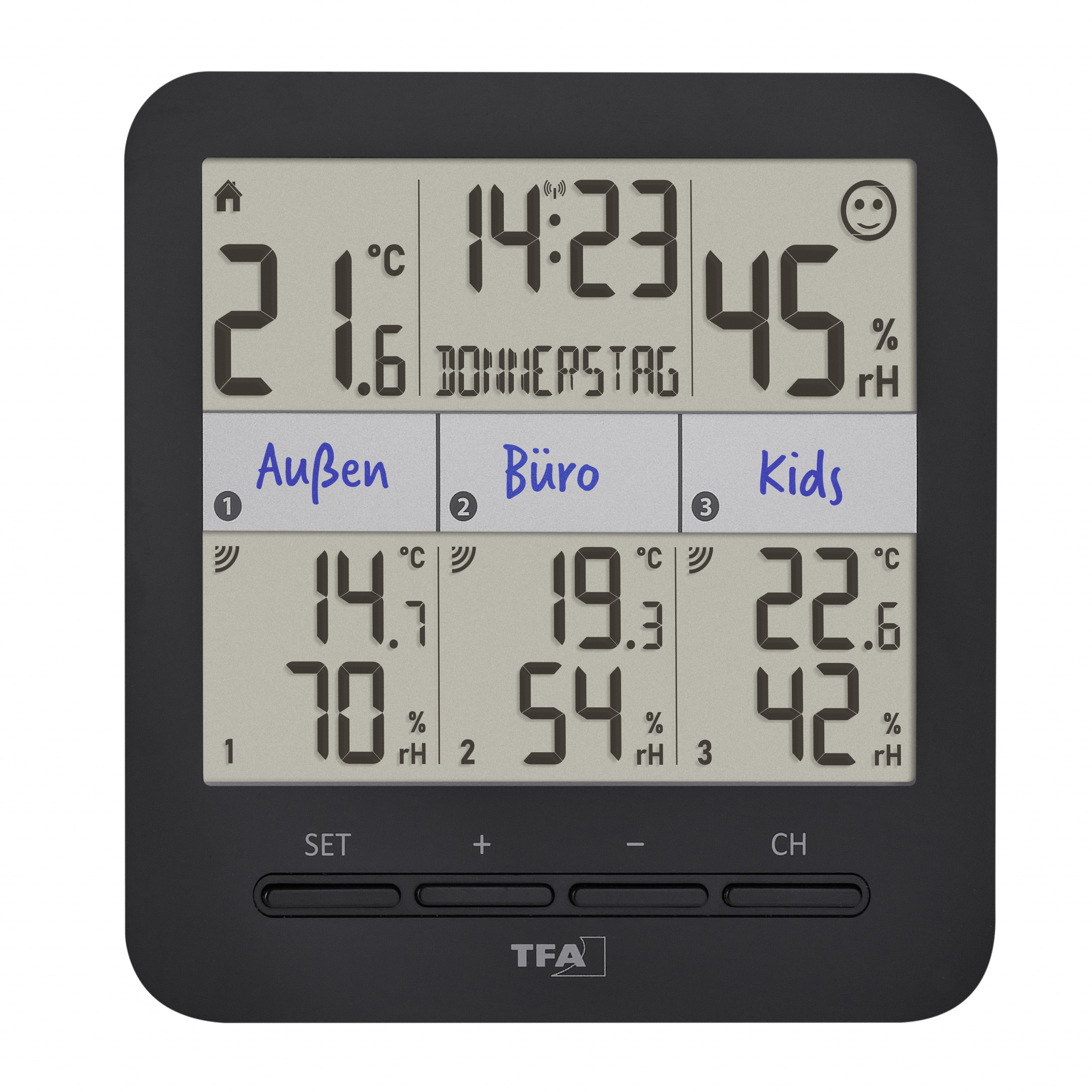

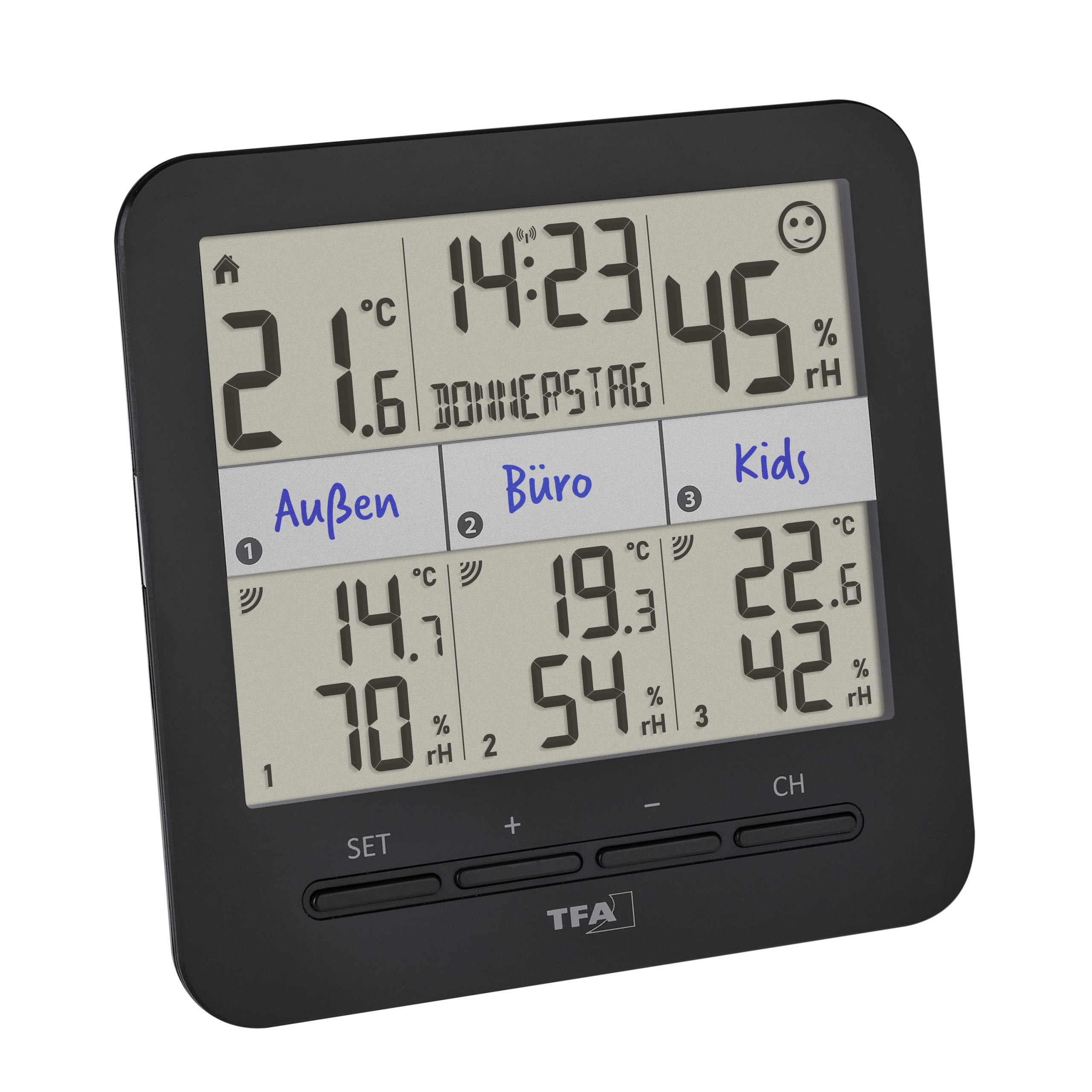

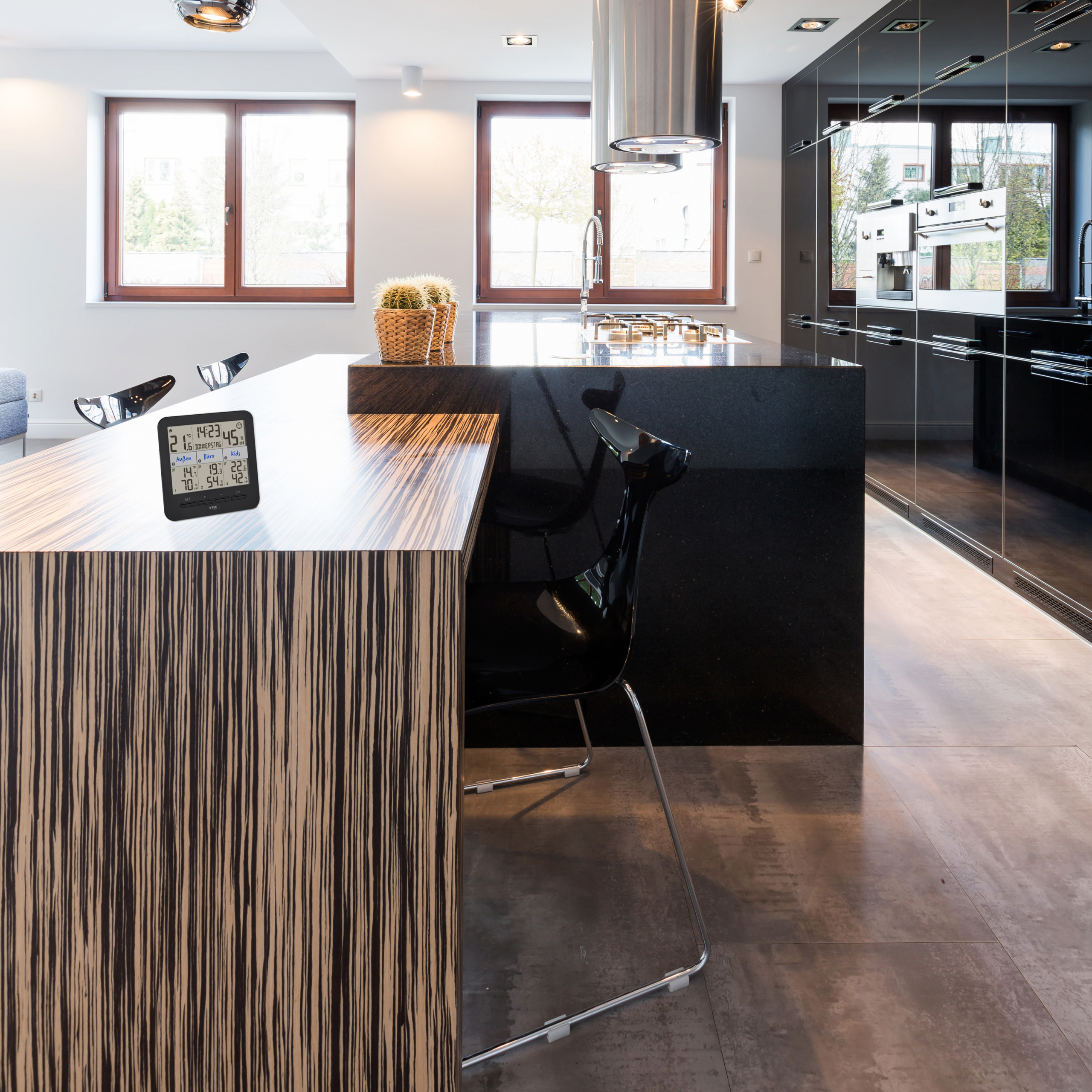

  • Incl. KLIMA@HOME 2 for the control of room and outdoor climate at 4 different locations

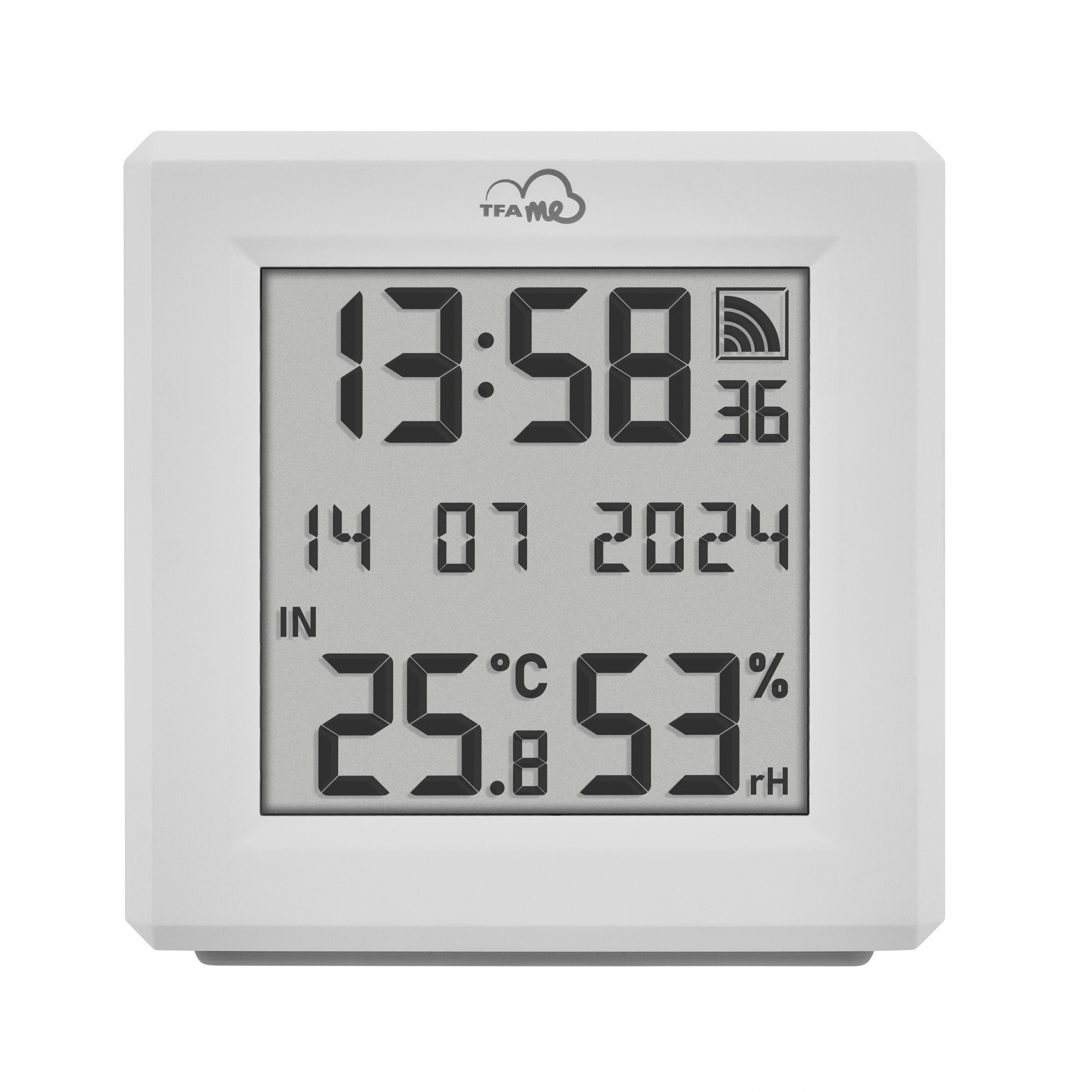

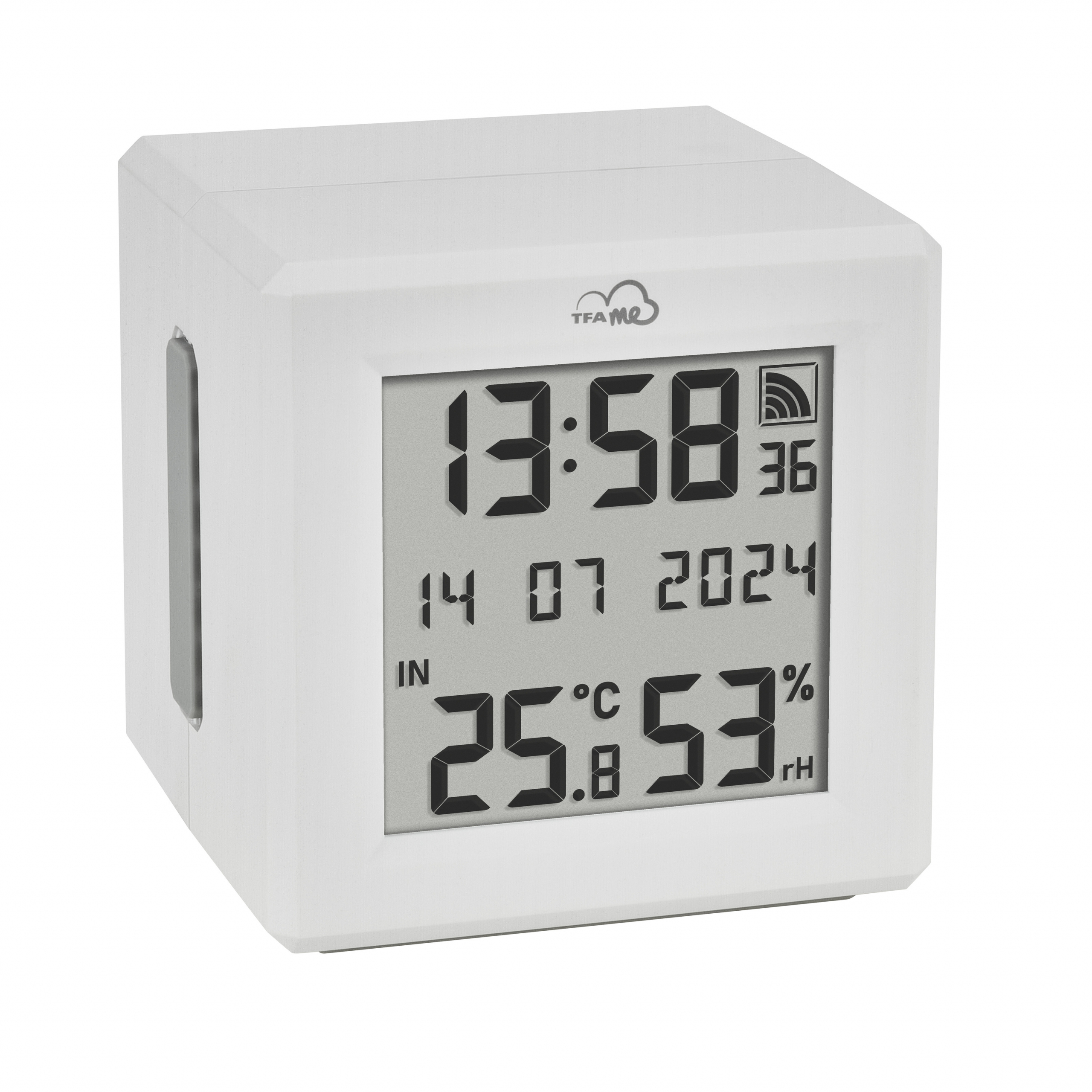

  • Gateway display shows indoor temperature and humidity or values from max. 5 transmitters (sold separately)
  • Time with date or weekday (6 languages)
  • TFA.me portal: Flexible access via smartphone, tablet or PC, evaluation of the data with maximum and minimum values as well as trend graphs, data export can be set to daily, weekly or monthly, alarm messages by e-mail.

TFA Quality mark:

  • Registered TFA Design Patent

Technical data

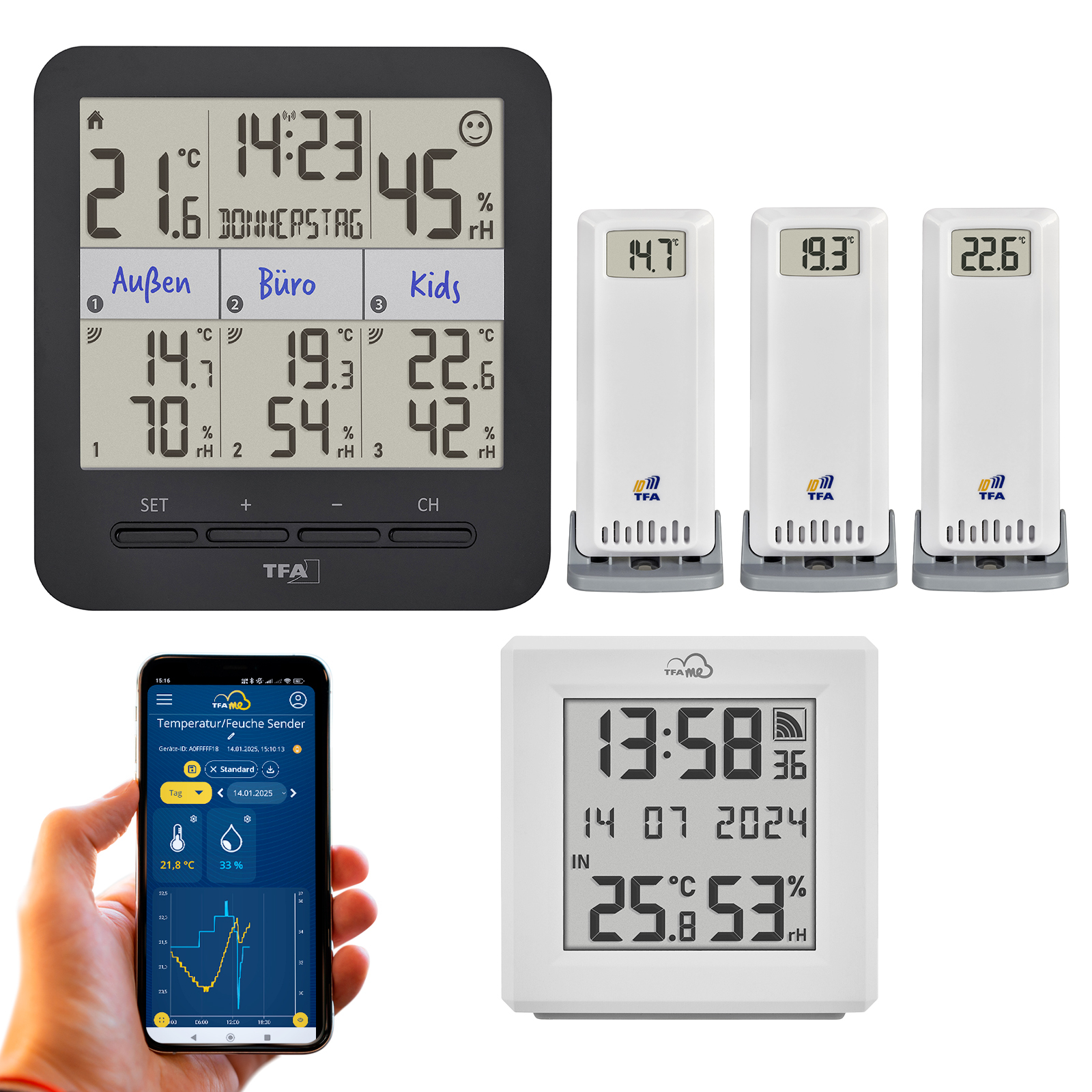

Delivery contents Gateway, KLIMA@HOME 2 (3x TH transmitter and base Station), power adaptor, instruction manual
Measuring range temperature -40...+60°C
Maximum range 100 m
Maximum amount of transmitters 5 (on the LCD of the base station), 50 via TFA.me online platform

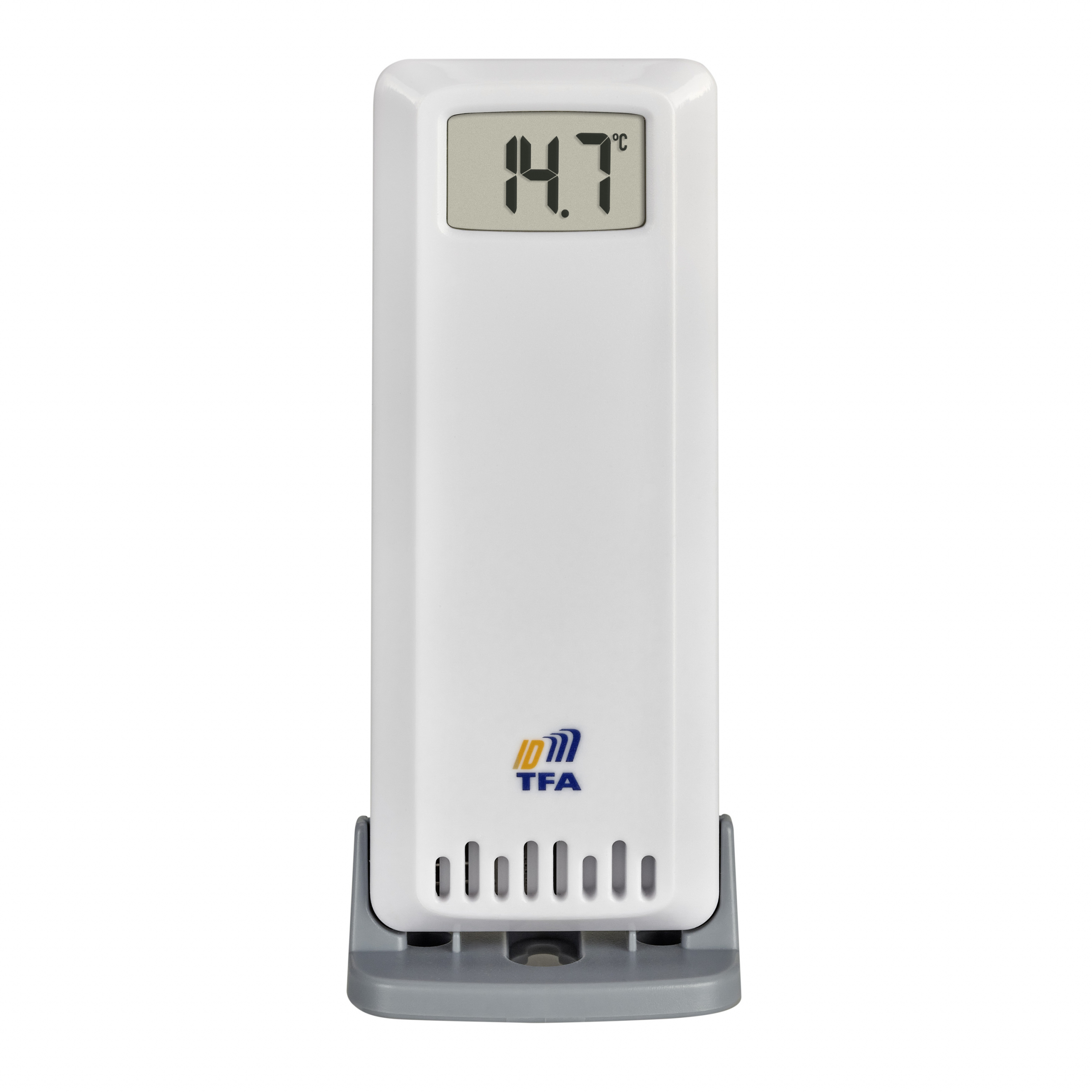

Transmitter included in delivery 3x 30.3900.02
Transmitter optional 30.3901.01 (temperature transmitter), 30.3902.02 (temperature transmitter with cable probe), 30.3906.02 (Thermo-Hygro-Sensor), 30.3904.02 (Windsensor), 30.3908 (Thermo-Hygro-Sender INDOOR), 30.3905.02 (Thermo-Hygro-Sensor with cable probe), 30.3903.02 (rain transmitter), 30.3907.02 (Poolsensor)
Transmission frequency 868 MHz
Measuring range temperature indoor 0...+50°C
Measuring range humidity indoor 10...99%
Material Plastic
Assembling Wall mounting or freestanding
Power consumption Batteries, power adapter (EU plug)
Batteries 3 x 1,5 V AAA (Gateway Backup), 5x 1,5V AA (KLIMA@HOME 2)
Batteries included no
Dimensions Gateway: (L) 70 x (B) 69 x (H) 70 mm, KLIMA@HOME 2: (L) 128 x (B) 32 (59) x (H) 128 (124) mm
Weight Gateway: 103g, KLIMA@HOME 2: 211 g
